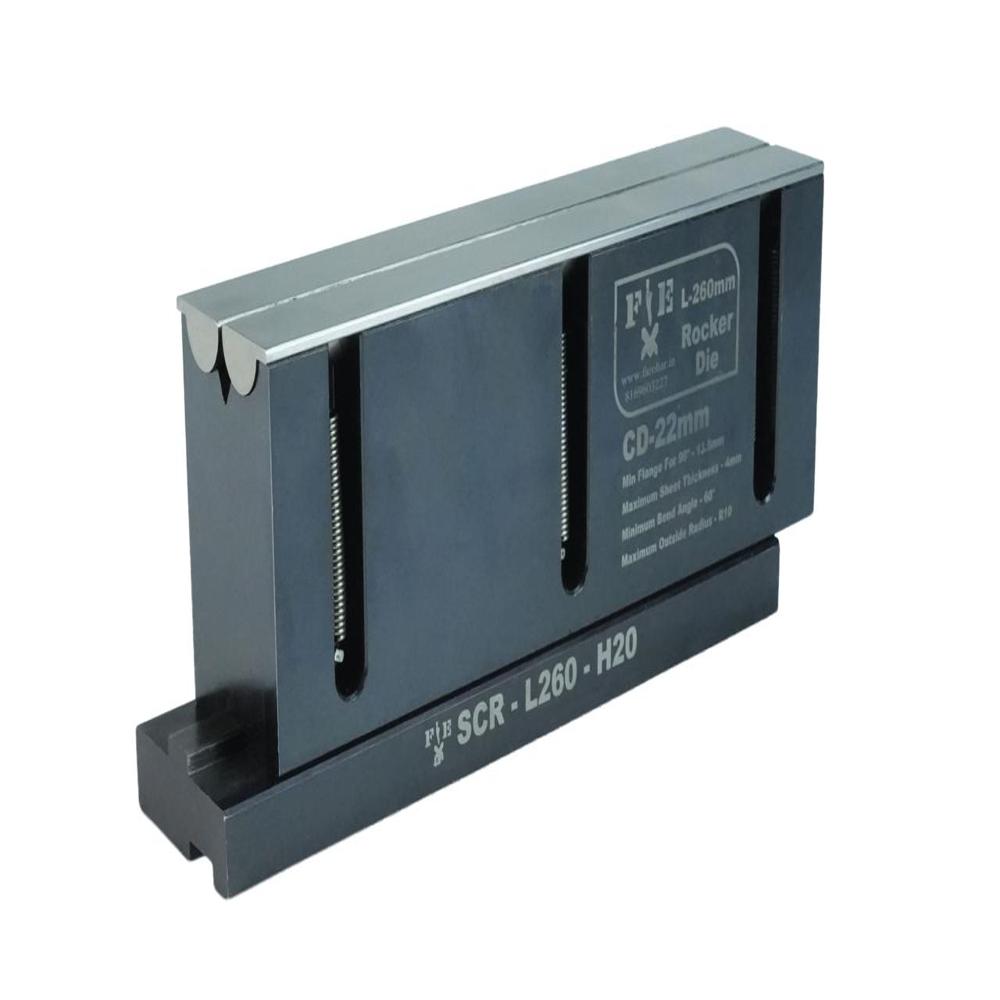

22CD Rocker Die - Amada Type

Name: 22CD Rocker Die - Amada Type
Brand: FAROHAR ENGINEERING
Price: 80000.0 INR
Availability: InStock

Price 80000.0 INR/ Piece

Get a Price/Quote

MOQ : 4 Pieces

22CD Rocker Die - Amada Type Specification

Working Process
Punching & Shearing

Life Span
Long Service Life

Die Head
22CD

Shaping Mode
Rocker Die

Material
High Speed Steel (HSS)

Application
Turret Punch Press - Amada Type

Height
120 Millimeter (mm)

Hardness
HRC 58-60

Product Type
Standard Rocker Die

Weight
26 Kilograms (kg)

Width
60 Millimeter (mm)

Length
520 Millimeter (mm)

Tolerance
0.005 mm

Height
26 mm

Processing Type
Precision Machined

Compatibility
Amada Turret Punch Machine

Usage
Sheet Metal Forming and Fabrication

Color
Silver Grey

Diameter
90 mm

Weight
Approx. 980 g

Surface Finish
Ground & Polished

22CD Rocker Die - Amada Type Trade Information

Minimum Order Quantity
4 Pieces

Delivery Time
4 Week

About 22CD Rocker Die - Amada Type

Achieving minimal flange bending.Bend tapered flanges without bulgingBend aesthetic materials mark-freeDodging deformation, bend perforated, chequered plates.Form short, tapered flanges with finesse.Bend adjacent to holes, slots without distortionReduce tool changeovers to boost efficiency.

Chrome Nickel Grade tool steel-Toughened 382HRcand Working Area LaserHardened 55/56Hrc.Rocker Material : ChromeVanadium Steel VacuumHardened 582HRc.

Designed for Amada Turret Punch Machines

This 22CD Rocker Die is specifically manufactured for compatibility with Amada-type turret punch presses. Its precise construction guarantees seamless integration, enhancing productivity and reducing downtime during metal forming tasks. The robust build is particularly suited for busy fabrication units requiring reliable and repeatable results.

Precision Machining for Superior Performance

Fabricated using high-speed steel and advanced machining processes, this rocker die delivers exceptional accuracy with a tolerance of just 0.005 mm. It features a ground and polished surface, which not only extends its working lifespan but also ensures clean and consistent punches, suitable for precise engineering requirements.

Engineered for Longevity and Efficiency

With hardening up to HRC 58-60, this die is built to withstand the rigors of repetitive punching and shearing processes. Its long service life reduces the frequency of replacements, making it a cost-effective choice for continuous sheet metal fabrication applications.

FAQ's of 22CD Rocker Die - Amada Type:

Q: How is the 22CD Rocker Die used in sheet metal fabrication?

A: The 22CD Rocker Die is integrated into Amada turret punch presses, where it performs precise punching and shearing tasks during sheet metal forming. Its precision-machined design ensures accurate shapes and sizes with every operation.

Q: What are the key benefits of using this rocker die for Amada machines?

A: This die ensures reliable operation, long service life, and superior punch quality due to its high-speed steel construction and ground, polished finish. It minimizes downtime and maximizes efficiency for industrial fabrication processes.

Q: When should I consider replacing the 22CD Rocker Die?

A: You should consider replacement when you notice reduced punch quality or increased wear beyond the specified tolerance of 0.005 mm. However, the die is engineered to offer a long service life under proper usage conditions.

Q: Where is the 22CD Rocker Die manufactured and supplied from?

A: The 22CD Rocker Die is manufactured and supplied by a reputable company based in India, ensuring high standards of quality and precision for industrial applications.

Q: What processing steps ensure the die's durability and precision?

A: The die undergoes advanced precision machining, surface grinding, and polishing, followed by hardening to HRC 58-60, which collectively secure its durability and tight tolerance for demanding production needs.

Q: Who can benefit most from this rocker die?

A: Manufacturers and fabricators involved in sheet metal forming and those using Amada turret punch machines will benefit from this sturdy, accurate, and long-lasting die.

Q: How does the material and surface finish enhance product performance?

A: The use of high-speed steel and a polished, ground surface finish reduces friction and wear, resulting in smoother operations, less maintenance, and consistently high-quality output.
