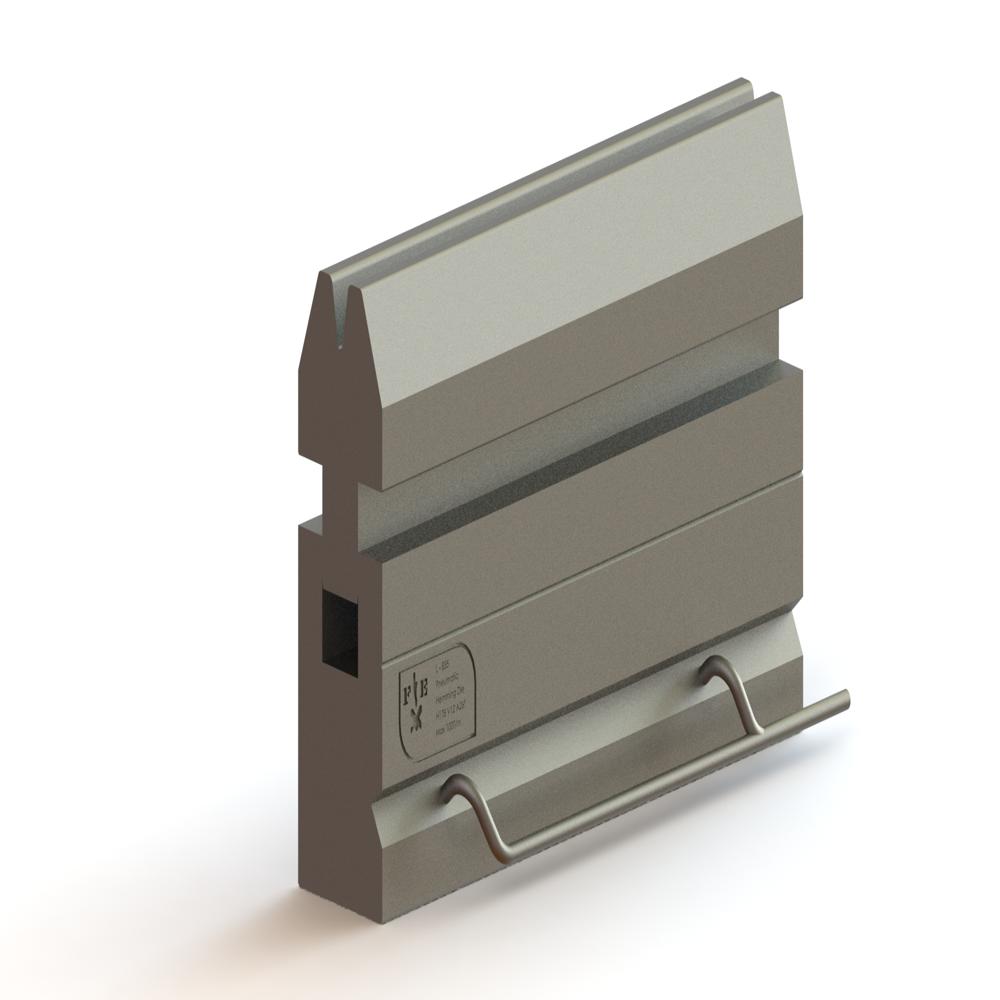

Pneumatic Hemming Die V12 - Amada Type

Name: Pneumatic Hemming Die V12 - Amada Type
Brand: FAROHAR ENGINEERING
Price: 110000.0 INR
Availability: InStock

Price 110000.0 INR/ Piece

Get a Price/Quote

MOQ : 4 Pieces

Pneumatic Hemming Die V12 - Amada Type Specification

Die Head
V12 Type

Life Span
80,000 - 100,000 cycles

Working Process
Pneumatic Hemming

Shaping Mode
Press Mold

Material
High-Grade Tool Steel

Height
178 Millimeter (mm)

Application
Sheet Metal Folding / Hemming

Hardness
58 - 62 HRC

Weight
59 Kilograms (kg)

Width
60 Millimeter (mm)

Tolerance
0.02 mm

Length
835 Millimeter (mm)

Actuation
Pneumatic Cylinder Operated

Weight
Approx. 16 kg

Compatible Machine Type
Amada Press Brake

Operating Pressure
0.5 - 0.8 MPa

Die Dimensions
Standard Amada Hemming Size

Surface Treatment
Precision Ground and Hardened

Repeatability
High Repeat Accuracy

Finish
Mirror Polished

Mounting Style
Quick Change

Pneumatic Hemming Die V12 - Amada Type Trade Information

Minimum Order Quantity
4 Pieces

Delivery Time
4 Week

About Pneumatic Hemming Die V12 - Amada Type

The pneumatic hemming die is utilized for multiple 90-degree bends and single hemming operations, thereby reducing tool changes over time.

We are offering a huge range of Pneumatic Hemming Die.

We have hemming tool to suit hydraulic as well as mechanical Press brake machine. For conventional as well as CNC machine.

Material:

M-01 Performance grade.

Cr'Mn'Mo 900-1020 N/mm2

(Alloy steel)

Quenched and tempered 302 HRc.

Tip Laser Hardened 522HRc.

Unmatched Efficiency for Sheet Metal Hemming

Experience superior performance with the Pneumatic Hemming Die V12, designed for seamless integration with Amada press brakes. This die optimizes sheet metal folding processes through its pneumatic cylinder actuation, promising high repeat accuracy and minimal downtime due to its convenient quick-change mounting system. Built with hardened, precision-ground steel, it delivers outstanding durability, catering to rigorous industrial demands for both quality and efficiency.

Built for Longevity and Precision

Engineered with high-grade tool steel, the V12 die undergoes mirror polishing and precision hardening to achieve a hardness of 58-62 HRC. Its excellent repeatability (tolerance of 0.02 mm) and a long operational life of up to 100,000 cycles minimize replacements and ensure consistent outputs. Its robust construction supports applications across diverse industries, providing reliability where it matters most.

FAQ's of Pneumatic Hemming Die V12 - Amada Type:

Q: How is the Pneumatic Hemming Die V12 installed on Amada Press Brakes?

A: This die features a quick-change mounting style, enabling fast and secure installation onto Amada press brakes. Simply align the die with the machine's designated slot and lock it in place according to the manufacturer's guidelines.

Q: What working pressure range is required for the pneumatic cylinder operation?

A: The die operates efficiently within a pneumatic pressure range of 0.5 to 0.8 MPa, ensuring reliable actuation and consistent hemming performance.

Q: When should the die be replaced or serviced?

A: Under standard operating conditions, the Pneumatic Hemming Die V12 offers a life span of 80,000 to 100,000 cycles. Replace or service the die if you observe inconsistent folds, excessive wear, or reduced accuracy.

Q: Where can this die be used?

A: It is ideal for applications requiring precise sheet metal folding or hemming, commonly found in automotive, aerospace, appliance, and general fabrication industries-especially where Amada press brakes are utilized.

Q: What benefits does the mirror-polished, hardened finish offer?

A: The mirror-polished and hardened finish (58-62 HRC) protects the die against wear and corrosion, promotes smooth material flow, and ensures consistently high-quality hems throughout its service life.

Q: How does the die maintain high repeat accuracy during operation?

A: Manufactured with high precision (tolerance of 0.02 mm) and robust tool steel, the die maintains dimensional stability and consistent folding results throughout prolonged use.
