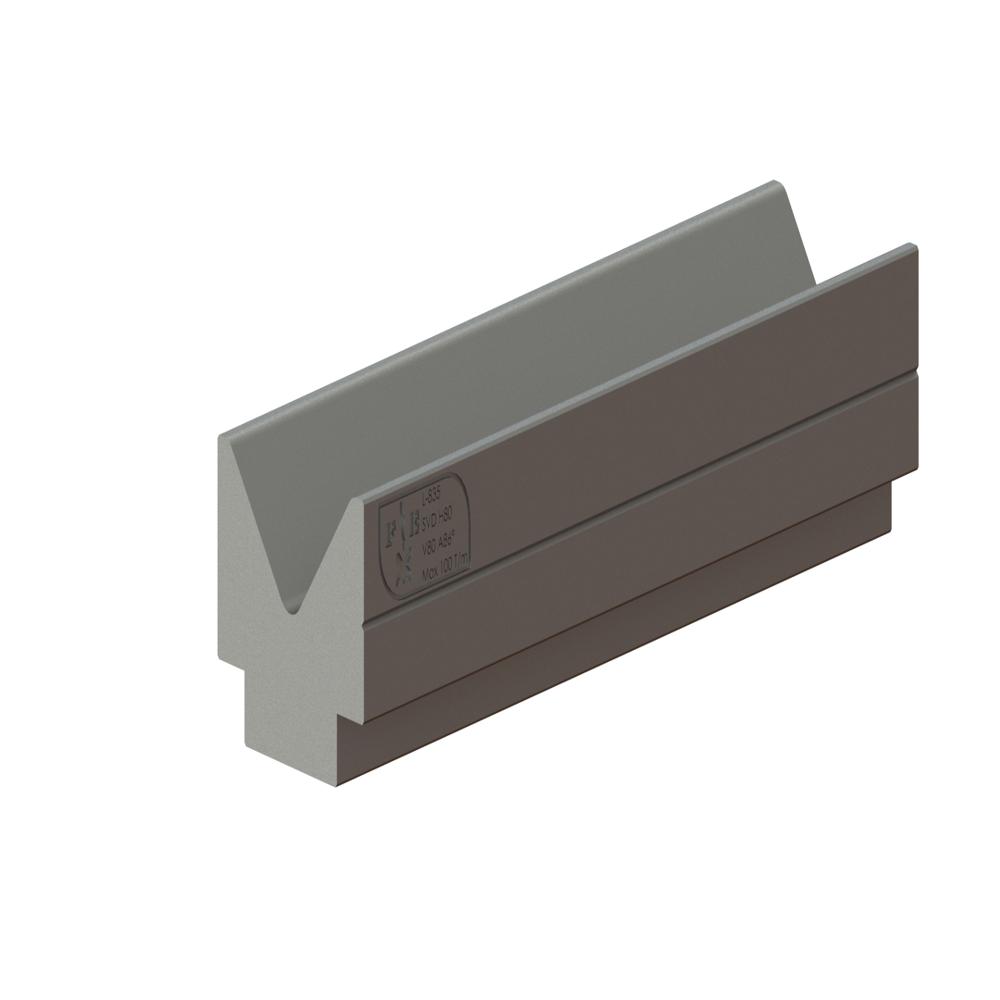

Single Vee Die (SVD) - Amada Type

Name: Single Vee Die (SVD) - Amada Type
Brand: FAROHAR ENGINEERING
Price: 40000.0 INR
Availability: InStock

Price 40000.0 INR/ Piece

Get a Price/Quote

MOQ : 4 Pieces

Single Vee Die (SVD) - Amada Type Specification

Die Head
Single Vee Die (SVD)

Working Process
Press Brake Bending

Life Span
High Durability; dependent on usage and material thickness

Shaping Mode
Forging Mould

Material
High Grade Tool Steel

Application
Press Brake Punching and Bending

Height
80 Millimeter (mm)

Product Type
SVD

Hardness
48~52 HRC

Weight
52.4 Kilograms (kg)

Width
100 Millimeter (mm)

Length
835 Millimeter (mm)

Tolerance
0.01 mm

Usage
Mild Steel, Stainless Steel, Aluminum, and other sheet metals

Mounting
Standard Amada clamping system

Surface Finish
Polished / Ground

Max. Bending Thickness
Up to 6mm (varies by die size and V-opening)

Height
Various, as per machine specification

Type
Amada Type

V Opening Width
Customizable (commonly available: 12mm, 16mm, 20mm, 24mm, 32mm, etc.)

Length
835 mm, 415 mm, or customizable

Width
Standard or customized upon request

Suitable Machine
Amada and compatible press brakes

Finish
Rust-resistant coated

Single Vee Die (SVD) - Amada Type Trade Information

Minimum Order Quantity
4 Pieces

Supply Ability
100 Pieces Per Month

Delivery Time
4 Days

About Single Vee Die (SVD) - Amada Type

We are offering a huge range of Single Vee Amada Type Press Brake Die

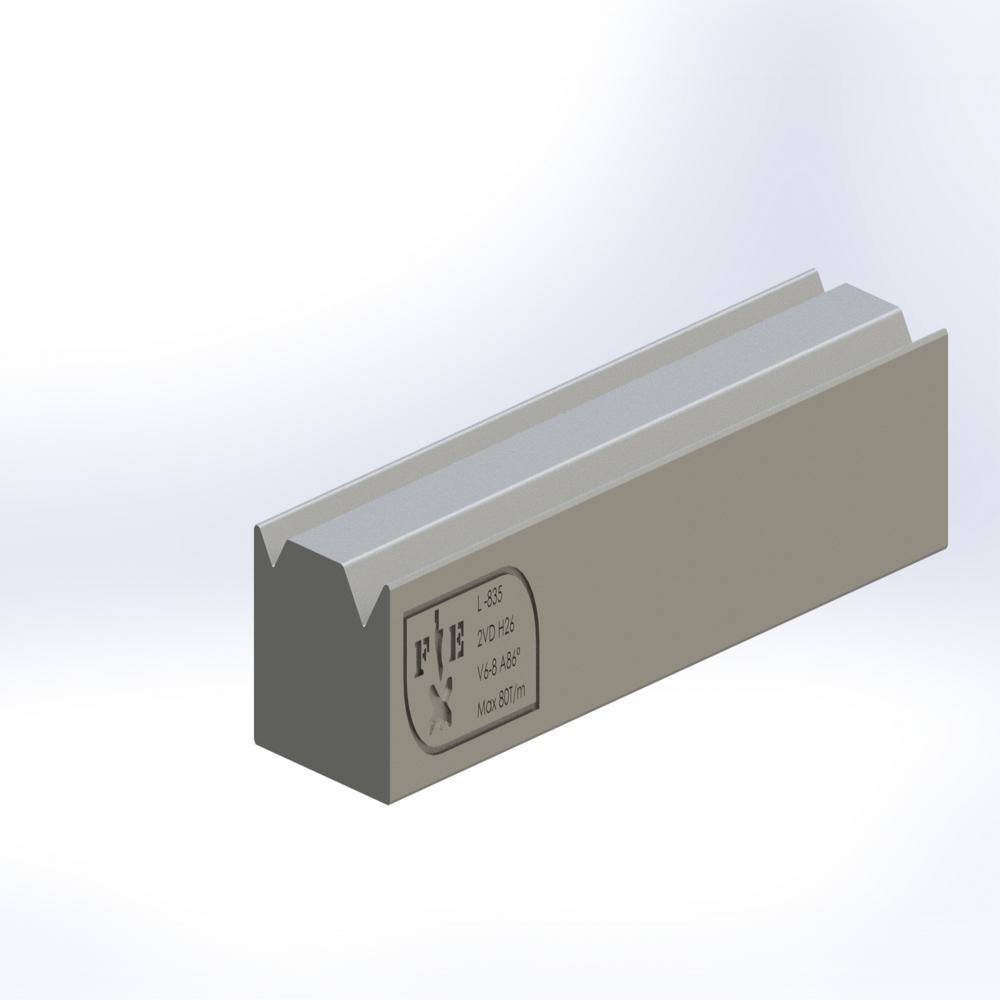

Two vee die blocks.

There are multiple variants of two vee die blocks.

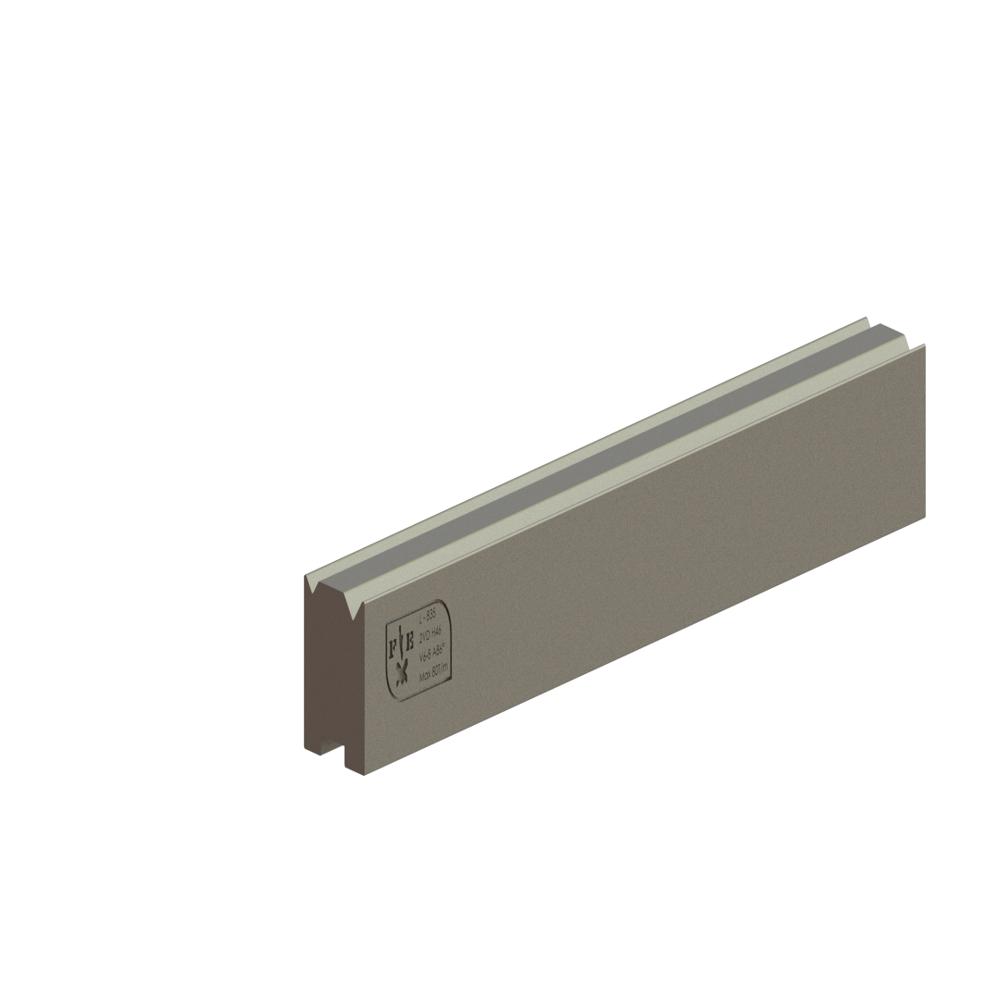

Side mounting, rail mounting and self-centering die block.

Various combinations of degree and vee opening are available.

We also manufacture die mounting rails, self- centering rails and die holders.

Variants of raw material and heat treatment process is offered to manufacture tooling to suit international quality standards and maintain cost efficiency.

Precision and Customization for Diverse Needs

The Amada-type Single Vee Die supports a wide range of metalworking applications with customizable V-opening widths to suit varying sheet thicknesses. Its exacting tolerances and robust design enable precise, repeatable bends for diverse sheet metal fabrication requirements.

Engineered for Longevity and Performance

Manufactured from high-quality tool steel and enhanced with a rust-resistant finish, the die delivers high durability throughout its lifespan. Designed to withstand heavy-duty use on Amada and compatible machines, it maintains precision and efficiency job after job.

Effortless Integration and Broad Compatibility

The die mounts seamlessly using the standard Amada clamping system, ensuring quick installation on a variety of press brakes. It is suitable for shaping a spectrum of materials, including mild and stainless steel as well as aluminum.

FAQ's of Single Vee Die (SVD) - Amada Type:

Q: How does the Single Vee Die (Amada Type) enhance press brake bending processes?

A: The Single Vee Die provides precise and consistent bends due to its high-grade tool steel construction, customizable V-opening widths, and exacting tolerances. Its design ensures compatibility with Amada and similar press brakes, streamlining the bending process for various sheet metals.

Q: What materials can the Single Vee Die be used with?

A: This die is suitable for bending mild steel, stainless steel, aluminum, and several other sheet metals, ensuring versatile application in both fabrication and manufacturing settings.

Q: When should I choose a specific V-opening width for my project?

A: The selection of V-opening width depends on the thickness of the sheet metal being processed. Typically, larger V-openings are chosen for thicker materials to achieve optimal bending results and prevent damage to both the material and the die.

Q: Where can the Single Vee Die be installed, and is it limited to Amada press brakes?

A: While specifically designed for Amada-type presses, the die is also compatible with most machines that accept Amada standard clamping systems, expanding its integration possibilities across metalworking shops.

Q: What is the typical lifespan of the Single Vee Die, and how can I maximize it?

A: The die offers high durability thanks to its rust-resistant finish and tool steel makeup. Lifespan is largely determined by usage frequency, material thickness, and proper maintenance-regular cleaning and avoiding metal overcapacity will help extend its operational life.

Q: How is the die installed on a press brake?

A: Installation is straightforward with the standard Amada clamping system, allowing operators to securely mount the die and ensure accurate alignment for efficient operation.
