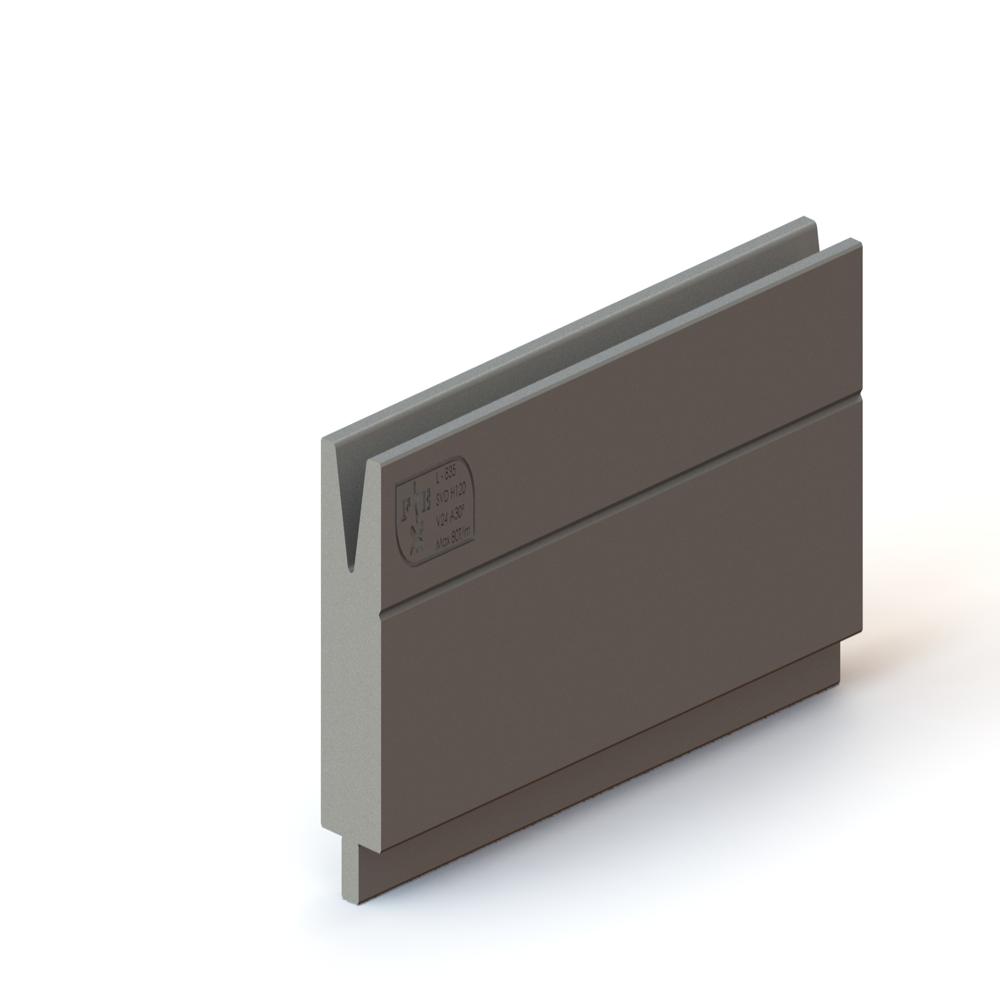

Single Vee Die (SVD) - LVD Type

Name: Single Vee Die (SVD) - LVD Type
Brand: FAROHAR ENGINEERING
Price: 29000.0 INR
Availability: InStock

Price 29000.0 INR/ Piece

Get a Price/Quote

MOQ : 4 Pieces

Single Vee Die (SVD) - LVD Type Specification

Life Span
Up to 200,000 bends (depending on material and usage)

Working Process
Sheet Metal Bending

Die Head
Single Vee Die (SVD) - LVD Type

Shaping Mode
Vee Die (Press Brake Tooling)

Material
High Grade Alloy Steel

Application
Press Brake Machines for sheet metal forming

Height
120 Millimeter (mm)

Hardness
46-52 HRC

Product Type
Single Vee Die

Weight
31.4 Kilograms (kg)

Length
835 Millimeter (mm)

Tolerance
0.01 mm

Width
40 Millimeter (mm)

Usage
Mild steel, stainless steel, aluminum, copper bending

Length
835 mm / 415 mm / 100 mm (standard and custom lengths available)

Vee Opening Width
8 mm - 120 mm (customizable)

Weight
Varies by length and opening

Max. Tonnage Capacity
Up to 400 tons

Compatibility
LVD Style Press Brakes

Surface Finish
Precision Ground and Polished

Angle
30, 45, 60, 85, 90

Heat Treatment
Through hardened

Packaging Type
Wooden Box or Customized

Single Vee Die (SVD) - LVD Type Trade Information

Minimum Order Quantity
4 Pieces

Delivery Time
4 Week

About Single Vee Die (SVD) - LVD Type

We are offering a huge range of Single Vee LVD Type Press Brake Die

Material Option :

M-01 Performance Grade.
Cr'Mn'Mo 900-1100 N/mm2
(Alloy steel)
Quenched and tempered 302 HRc.
Tip Induction Hardened 522HRc

M-02 Economy Grade.
C45 : 570-680 N/mm
(Plain Carbon Steel)
Tip Induction Hardened 522HRc.

Precision Engineering for Superior Results

The Single Vee Die (SVD) - LVD Type stands out due to its exceptional dimensional tolerance of just 0.01 mm and a meticulously polished surface. The precision ground finish ensures smooth sheet movement and significantly reduces the risk of surface imperfections during bending. Its robust build guarantees longevity, especially in high-volume metal forming environments.

Versatile Applications Across Industries

Designed for use with LVD style press brakes, this die is perfect for sheet metal bending in both heavy-duty industrial and fine-detail manufacturing. The customizable vee opening width and selection of included angles-30, 45, 60, 85, or 90 degrees-allow for versatility in handling various material thicknesses and project requirements, from mild steel to non-ferrous metals.

Durability Meets Safety and Easy Handling

With up to 200,000 bends depending on use and material, the SVD - LVD Type is built to last. It undergoes comprehensive heat treatment for consistent hardness (46-52 HRC), ensuring reliable performance run after run. For safe transport and storage, each die is delivered in a sturdy wooden box or custom packaging as per requirements.

FAQ's of Single Vee Die (SVD) - LVD Type:

Q: How do I select the appropriate vee opening width for my application?

A: To determine the suitable vee opening width, consider the thickness and type of sheet metal you will be bending. The Single Vee Die (SVD) - LVD Type offers customizable openings from 8 mm to 120 mm, making it adaptable for various materials and project needs.

Q: What materials can be bent using this SVD - LVD Type die?

A: This die is designed to efficiently bend mild steel, stainless steel, aluminum, and copper. Its high-grade alloy steel construction and precision ground finish ensure consistent results across a range of metal types.

Q: When should I replace the die to ensure optimal bending quality?

A: The die has a lifespan of up to 200,000 bends, depending on the materials and usage patterns. Replace the die if you notice wear, burrs, or diminished bend quality, as continuous use beyond its life span may affect accuracy and safety.

Q: Where is this die compatible for installation?

A: The SVD - LVD Type die is compatible with LVD style press brake machines commonly used across metal fabrication shops and industrial manufacturing setups.

Q: What is the main benefit of the precision ground and polished surface finish?

A: A precision ground and polished surface minimizes friction between the die and the workpiece, significantly reducing the risk of marring or scratching metal surfaces during the bending process.

Q: How does the heat treatment process enhance the die's durability?

A: Through hardening and a consistent 46-52 HRC hardness rating, the die achieves superior wear resistance and retains its shape under high tonnage, supporting extensive usage in demanding operations.

Q: What is the packaging method for safe delivery of the die?

A: Each Single Vee Die (SVD) - LVD Type is packed in a wooden box or custom packaging to prevent damage during transit and facilitate secure handling on arrival.
