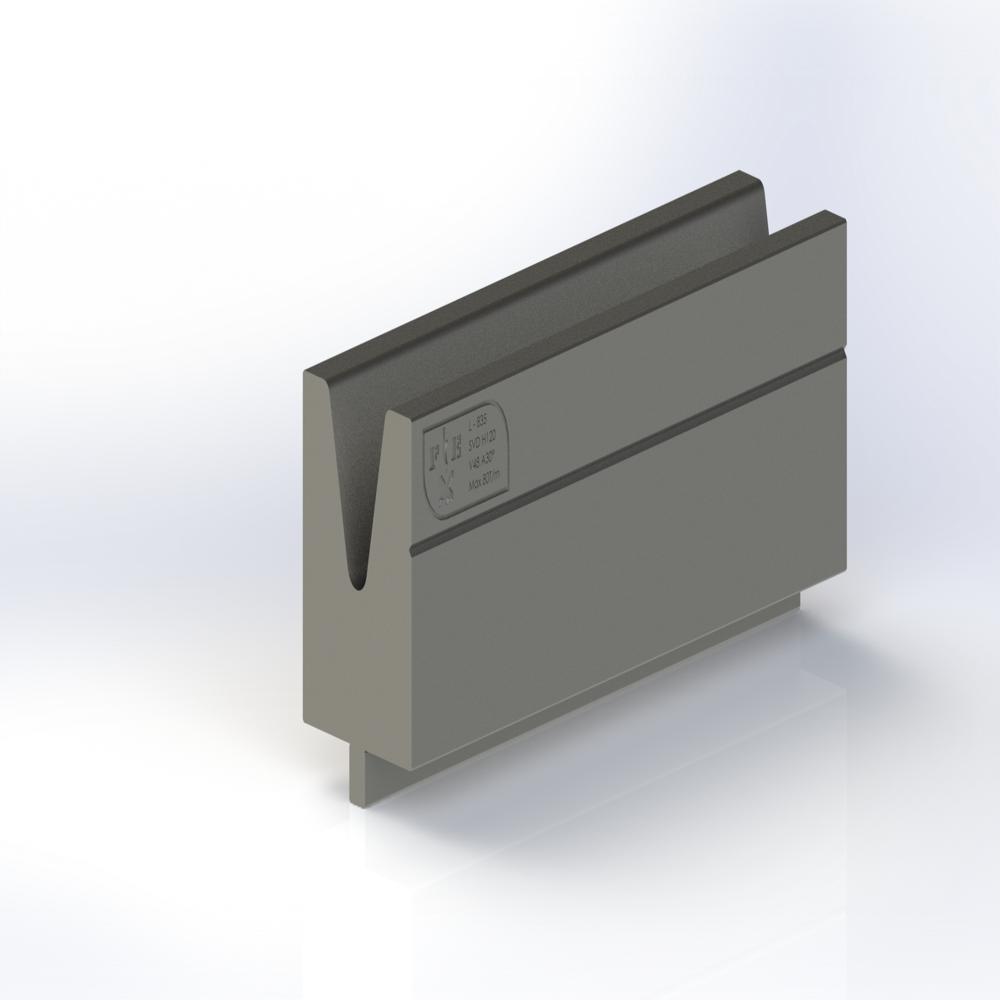

Single Vee Die (SVD) - Trumpf Type

Name: Single Vee Die (SVD) - Trumpf Type
Brand: FAROHAR ENGINEERING
Price: 27000.0 INR
Availability: InStock

Price 27000.0 INR/ Piece

Get a Price/Quote

MOQ : 4 Pieces

Single Vee Die (SVD) - Trumpf Type Specification

Working Process
Press Brake Forming

Die Head
Single Vee Die (SVD)

Life Span
Up to 250,000 bends (depending on material/usage)

Shaping Mode
Forging

Material
Alloy Steel

Height
120 Millimeter (mm)

Application
Sheet Metal Bending

Product Type
Single Vee Die

Hardness
48-52 HRC

Weight
20.4 Kilograms (kg)

Tolerance
0.01 mm

Width
26 Millimeter (mm)

Length
835 Millimeter (mm)

Surface Finish
Precision Ground

Custom Options
V-width, angle, and length customization possible

Corrosion Resistance
Anti-corrosive property due to surface treatment

V-Opening Width
Commonly 12, 16, 20, 25, 30, 40 mm (custom sizes available)

Max Bending Capacity
Varies by die size, up to 10 mm mild steel

Mounting Type
TRUMPF Quick-Release Mount or Standard Mount

Length
Up to 835 mm (Standard segments and full length available)

Die Angle
85 Standard (customizable)

Heat Treatment
Vacuum Hardened

Compatibility
TRUMPF Press Brake Machines

Single Vee Die (SVD) - Trumpf Type Trade Information

Minimum Order Quantity
4 Pieces

Supply Ability
100 Pieces Per Month

Delivery Time
4 Days

About Single Vee Die (SVD) - Trumpf Type

We are offering a huge range of Single Vee Trumpf Type Press Brake Die
Material Option :

M-01 Performance grade.
Cr'Mn'Mo 900-1020 N/mm2
(Alloy steel)
Quenched and tempered 302 HRc.
Tip Induction Hardened 522HRc

M-02 Economy grade.
C45 : 570-680 N/mm
(Plain Carbon Steel)
Tip Induction Hardened 522HRc.

Precision Engineered for Superior Bending

Built from premium alloy steel and finished with precision grinding, the Single Vee Die provides optimal results in press brake forming. Designed for TRUMPF compatibility and rigorous work environments, it consistently delivers accurate bends, significantly reducing downtime. Vacuum hardening and surface treatment enhance longevity and anti-corrosive properties, making it a dependable choice.

Customizable Solutions for Your Shop

This SVD comes in various standard V-widths and can be tailored in width, length, and angle to fit your specific production requirements. Multiple mounting choices-including quick-release-enable seamless integration with your TRUMPF machine. Such flexibility ensures you maximize productivity and meet unique bending challenges with ease.

FAQ's of Single Vee Die (SVD) - Trumpf Type:

Q: How is the Single Vee Die (SVD) - Trumpf Type installed on a TRUMPF press brake?

A: The Single Vee Die features both TRUMPF quick-release and standard mounting options. For quick-release, simply align and lock the die into place, minimizing setup time. Standard mounting involves securing the die using bolts or clamps as per your press brake's specifications.

Q: What sheet thicknesses can this die handle for bending?

A: The maximum bending capacity depends on the V-opening chosen. With the largest standard V-width (40 mm), it can bend up to 10 mm mild steel effectively. Custom dies can be configured for other material thicknesses according to application needs.

Q: When should I consider customizing the V-width or die angle?

A: Customizing the V-width or die angle is advisable when you need specific bend radii or are working with non-standard materials. These modifications help achieve precise results and accommodate project-specific requirements.

Q: Where is the Single Vee Die manufactured and supplied?

A: This product is manufactured and supplied in India, meeting global standards in quality and durability. The manufacturer also offers reliable support and custom manufacturing for worldwide clients.

Q: What are the benefits of the vacuum-hardened and anti-corrosive properties?

A: Vacuum hardening increases the die's surface hardness (48-52 HRC), minimizing wear and resulting in a longer lifespan of up to 250,000 bends. The anti-corrosive surface treatment further protects the die, enabling consistent performance and lower maintenance needs.

Q: How precise are bends using this die, and what is the working tolerance?

A: The Single Vee Die achieves exceptional accuracy with a working tolerance of 0.01 mm. This level of precision is ideal for industries where quality and repeatability are essential, ensuring consistent bend angles and dimensions.
