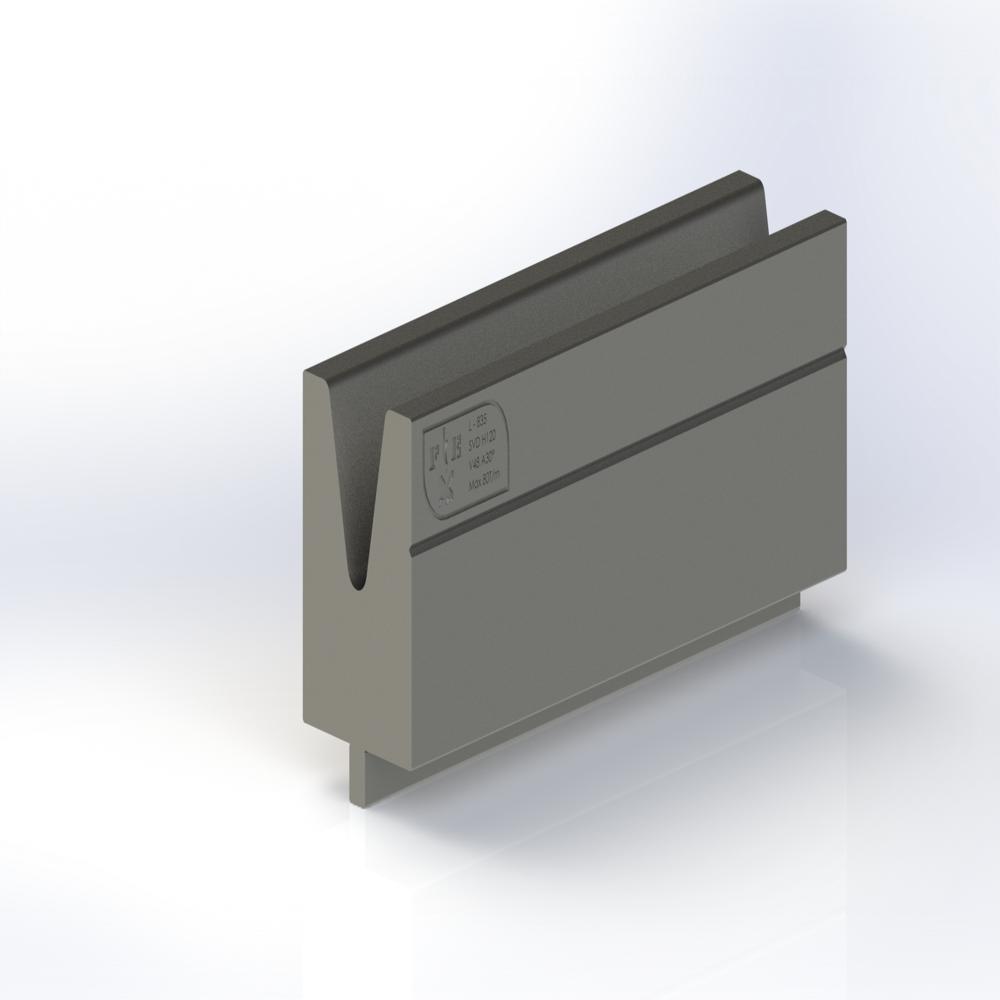

Single Vee Die (SVD) - Wila Type

Name: Single Vee Die (SVD) - Wila Type
Brand: FAROHAR ENGINEERING
Price: 30000.0 INR
Availability: InStock

Price 30000.0 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Single Vee Die (SVD) - Wila Type Specification

Die Head
Single Vee Die (SVD) - Wila Type

Life Span
Long lasting, up to 500,000 bends depending on material

Working Process
Press Brake Bending/Sheet Metal Forming

Shaping Mode
Vee Groove Bending

Material
High Quality Tool Steel

Application
Sheet Metal Bending, Press Brake Operations

Height
120 Millimeter (mm)

Hardness
HRC 55-60 (Induction Hardened)

Product Type
Single Vee Die

Weight
49 Kilograms (kg)

Width
65 Millimeter (mm)

Length
835 Millimeter (mm)

Tolerance
0.01 mm

Usage
Industrial, Fabrication, Sheet Metal Industry

Length
835 mm, 415 mm, and custom lengths available

Compatibility
Fits Wila/Trumpf style press brake holders

Height
60 mm/70 mm/80 mm/100 mm (as required)

Weight
Depends on length and size, approx. 7-18 kg/m

Load Capacity
Up to 1000 kN/m (Based on size and material)

Surface Finish
Ground & Polished

Heat Treatment
Induction Hardened on working surface

Mounting
Wila Standard Clamping System

Type
Wila/Trumpf European Style Die

Angle
Standard 85, 88, 90, customizable as per requirement

V Opening Width
Customizable (Standard: 6 mm, 10 mm, 12 mm, 16 mm, etc.)

Single Vee Die (SVD) - Wila Type Trade Information

Minimum Order Quantity
10 Pieces

Delivery Time
4 Week

Single Vee Die (SVD) - Wila Type About

We are offering a huge range of Single Vee Wila Type Press Brake Die
Material Option :

M-01 Performance grade.
Cr'Mn'Mo 900-1020 N/mm2
(Alloy steel)
Quenched and tempered 302 HRc.
Tip Induction Hardened 522HRc

M-02 Economy grade.
C45 : 570-680 N/mm
(Plain Carbon Steel)
Tip Induction Hardened 522HRc.

Precision Performance for Sheet Metal Bending

Engineered with tight tolerances (0.01 mm) and induction-hardened working surfaces, the Single Vee Die (SVD) - Wila Type ensures immaculate results in every press brake operation. Its sturdy construction guarantees consistent and precise Vee groove bends for a variety of applications in the sheet metal industry.

Customizable and Durable Design

With customizable V opening widths and selectable angle options (including 85, 88, and 90), this die suits a broad range of bending requirements. Ground and polished for a superior finish and designed to withstand up to 1,000 kN/m, its robust build offers longevity, capable of delivering up to 500,000 bends depending on material used.

Seamless Compatibility and Easy Mounting

The SVD - Wila Type integrates effortlessly with Wila or Trumpf style press brake holders, featuring the standard Wila clamping system. This compatibility streamlines installation processes and reduces setup times for fabricators, ensuring increased productivity on the factory floor.

FAQ's of Single Vee Die (SVD) - Wila Type:

Q: How does the Single Vee Die (SVD) - Wila Type benefit sheet metal fabrication processes?

A: This die provides precise, consistent Vee groove bends in various materials thanks to its tight tolerances and hardened surface. Its compatibility with Wila/Trumpf standard holders ensures smooth integration into existing press brake setups, enhancing both quality and efficiency in fabrication operations.

Q: What bending angles and V opening widths can I specify for this die?

A: You can choose from standard angles of 85, 88, and 90, or request custom angles based on your application needs. The V opening width is also customizable, with common options including 6, 10, 12, and 16 mm to suit different bending requirements.

Q: When should I consider using an induction-hardened tool steel die like this?

A: Induction-hardened dies are essential when high durability and a long life span are critical, particularly in high-volume or demanding sheet metal bending environments. The hardened surface resists wear and deformation, retaining sharpness and precision over hundreds of thousands of cycles.

Q: Where is the Single Vee Die - Wila Type manufactured and supplied from?

A: This die is manufactured and supplied in India, ensuring high-quality production standards and reliable sourcing for industrial and fabrication customers across the region.

Q: What is the typical process for installing or mounting this die?

A: The die uses the Wila standard clamping system, allowing for easy and secure mounting on compatible press brake machines. This system promotes user-friendly setup and swift changeovers, reducing downtime between production runs.

Q: How long does the Single Vee Die typically last under normal manufacturing conditions?

A: With proper use and within its specified load capacity, the die offers a long operating life-often up to 500,000 bends-depending on the material being formed and adherence to recommended usage guidelines.
