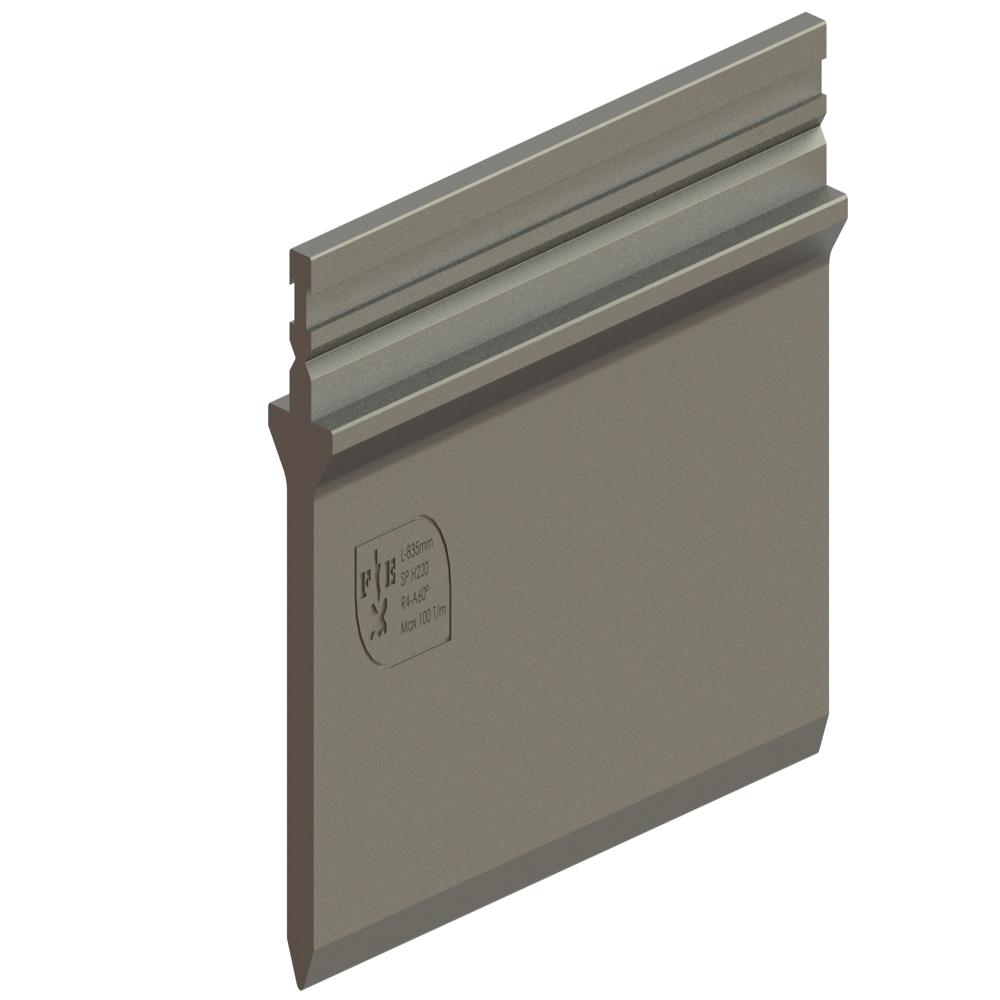

Straight Punch - Bystronic Type

Name: Straight Punch - Bystronic Type
Brand: FAROHAR ENGINEERING
Price: 35000.0 INR
Availability: InStock

Price 35000.0 INR/ Piece

Get a Price/Quote

MOQ : 4 Pieces

Straight Punch - Bystronic Type Specification

Color
Silver

Type
Straight Punch - Bystronic Type

Material
High-Speed Steel (HSS)

Power Source
Manual Press

Height
283 Millimeter (mm)

Product Type
Straight Punch

Dimensions
Standard/Custom (Height: 80-130 mm as per die requirements)

Length
835 Millimeter (mm)

Width
60 Millimeter (mm)

Weight
700-1800 grams

Tolerance
0.01 mm

Surface Finish
Precision ground and hardened

Max Bending Capacity
Up to 10 mm sheet thickness (depends on tool size)

Mounting Type
Quick-change clamp compatible

Packaging Type
Protective box packaging

Application
Sheet metal bending & punching

Compatibility
Bystronic press brake machines

Hardness
50-56 HRC

Straight Punch - Bystronic Type Trade Information

Minimum Order Quantity
4 Pieces

Supply Ability
100 Pieces Per Month

Delivery Time
4 Days

About Straight Punch - Bystronic Type

Our punches are made from premium alloy steel, dual heat-treated, CNC machined and ground to ensure dimensional accuracy, superior surface finish, and Highest in class wear resistance.

Straight Punch (SP) : Designed for standard bending operations and general-purpose fabrication

Material Option :

M-01 Performance grade.
Cr'Mn'Mo 900-1100 N/mm2
(Alloy steel)
Quenched and tempered 302 HRc.
Tip Induction Hardened 522HRc

Material Option :

M-02 Economy grade.
C45 : 570-680 N/mm
(Plain Carbon Steel)
Tip Induction Hardened 522HRc.

Exceptional Precision and Durability

This straight punch boasts a meticulously ground and hardened surface, offering a remarkable hardness range of 50-56 HRC. Its robust construction from high-speed steel ensures dependable longevity and consistent, high-quality results in sheet metal bending and punching for Bystronic press brake machines.

Versatile Compatibility and Easy Installation

Designed specifically for Bystronic press brake machines, the tool features a quick-change clamp system for seamless installation and removal. Its precise fit and compatibility ensure smooth operations across various industrial environments where efficient tooling changeover is crucial.

Tailored Dimensions for Any Application

Available in standard and customizable dimensions (height: 80-130 mm), this punch accommodates a range of die and sheet thickness requirements. The maximum bending capacity adapts to sheets up to 10 mm thick, depending on tool size, making it suitable for diverse metalworking projects.

FAQ's of Straight Punch - Bystronic Type:

Q: How do I install the Straight Punch - Bystronic Type on my Bystronic press brake machine?

A: Installation is straightforward thanks to the quick-change clamp compatibility. Simply align the punch with the press brake's tooling holder, secure it using the quick-change clamp, and ensure it is firmly in place before starting your metalworking process.

Q: What types of materials can this straight punch handle, and what is the maximum sheet thickness it can work with?

A: The punch is engineered from high-speed steel (HSS) and is suitable for processing various sheet metals up to 10 mm thick, depending on the specific tool size you select.

Q: When should I consider custom dimensions for this punch?

A: Custom dimensions, with heights ranging from 80 to 130 mm, are recommended if your die requirements or bending applications fall outside the standard range. This ensures optimal performance and compatibility with your specific press brake setup.

Q: Where is the Straight Punch - Bystronic Type manufactured and supplied from?

A: This product is manufactured and supplied in India, ensuring reliable availability and support across the region for industrial sheet metal processing needs.

Q: What is the benefit of the precision ground and hardened surface finish on this punch?

A: The precision ground and hardened surface (50-56 HRC) delivers superior durability, increased wear resistance, and ensures high-accuracy results during repeated sheet metal bending and punching operations.

Q: How does the protective box packaging benefit the product during transit and storage?

A: The protective box packaging safeguards the punch against physical damage, corrosion, or contamination during shipping and storage, ensuring it arrives in perfect working condition for immediate use.
