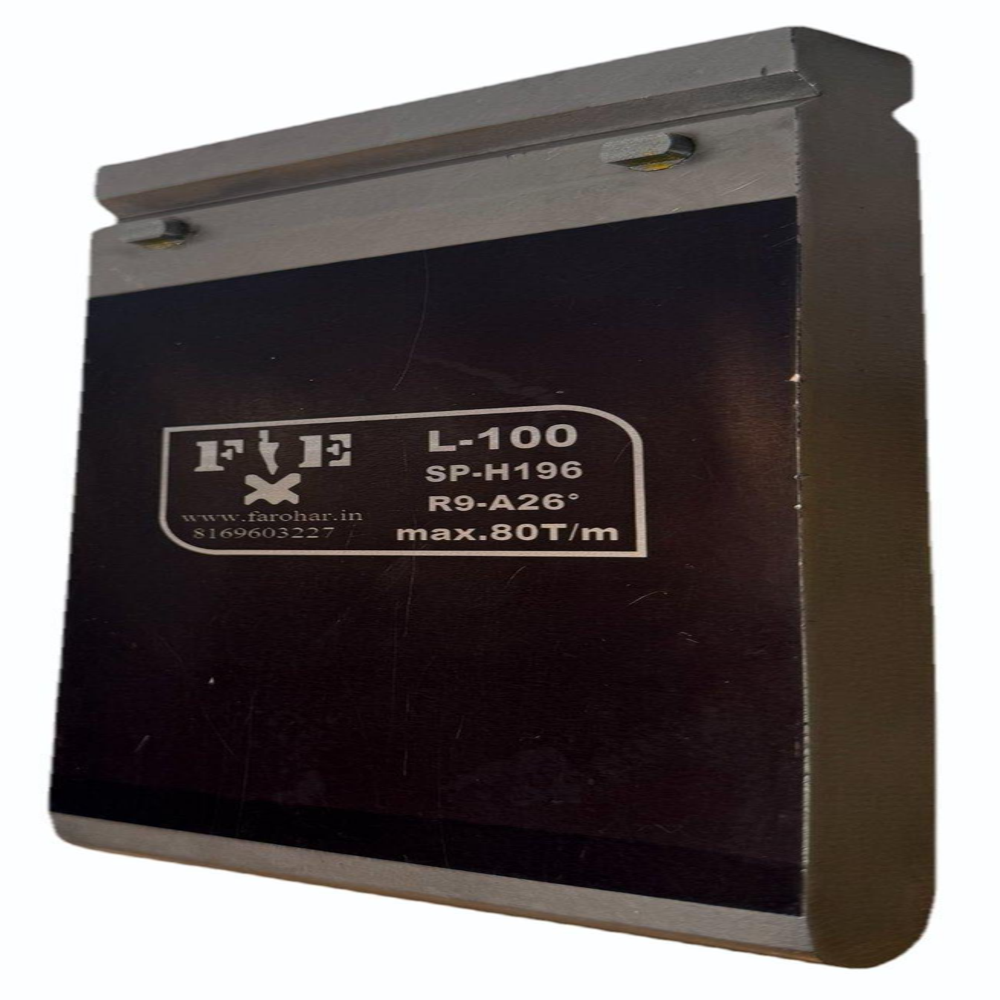

Straight Punch - Trumpf Type

Name: Straight Punch - Trumpf Type
Brand: FAROHAR ENGINEERING
Price: 32000.0 INR
Availability: InStock

Price 32000.0 INR/ Piece

Get a Price/Quote

MOQ : 4 Pieces

Straight Punch - Trumpf Type Specification

Color
Silver (Body) / Black (Tip)

Type
Straight Punch - Trumpf Type

Material
High-Speed Steel (HSS)

Power Source
Manual / Mechanical Press

Height
220 Millimeter (mm)

Product Type
Straight Punch

Dimensions
Based on model (customized or standard as per Trumpf tooling specs)

Weight
Varies with punch size, approx. 50 - 300 grams

Width
20 Millimeter (mm)

Length
835 Millimeter (mm)

Thread
None (Non-threaded shank)

Hardness
HRC 60-65

Cutting Edge Shape
Straight Edge

Packaging
Individual Protective Case

Compatibility
Trumpf, Sheet Metal Fabrication Machines

Application
Sheet Metal Punching, Compatible with Trumpf Machines, CNC Turret Punch

Shank Type
Round / Trumpf Standard

Coating
Uncoated or as per order (TiN, TiCN available on request)

Surface Finish
Polished

Tolerance
0.01 mm

Straight Punch - Trumpf Type Trade Information

Minimum Order Quantity
4 Pieces

Supply Ability
100 Pieces Per Month

Delivery Time
4 Week

About Straight Punch - Trumpf Type

The unique feature of this tool is that it can be used from both sides.

The segmented punch can be effortlessly positioned between two punches using the button-type, without requiring the removal of all tools.

Material Option :

M-01 Performance grade.
Cr'Mn'Mo 900-1020 N/mm2
(Alloy steel)
Quenched and tempered 302 HRc.
Tip Induction Hardened 522HRc

Material Option :

M-02 Economy grade.
C45 : 570-680 N/mm
(Plain Carbon Steel)
Tip Induction Hardened 522HRc.

Precision Engineering for Sheet Metal Fabrication

Our Straight Punch - Trumpf Type is built to the highest standards, delivering exceptional accuracy with a tight tolerance of 0.01 mm. Fabricated from high-speed steel and offered in multiple sizes, it ensures clean and efficient punching on sheet metals, making it an excellent choice for industrial applications requiring consistency and durability.

Versatile Compatibility and Customization Options

This punch is compatible with a variety of Trumpf and CNC turret punching machines. Customers can request customized coatings such as TiN or TiCN and select between standard or tailored dimensions to meet specific project requirements. The non-threaded shank and curated finishes simplify installation and operational longevity.

FAQ's of Straight Punch - Trumpf Type:

Q: How do I install the Straight Punch - Trumpf Type in my Trumpf CNC turret punch machine?

A: To install the punch, ensure the machine is safely powered off. Choose the correct shank type (round or Trumpf standard) and align the punch with the turret station. Insert and secure the punch according to your machine's user manual for proper operation and safety.

Q: What types of materials can the Straight Punch handle during sheet metal fabrication?

A: The punch, crafted from high-speed steel, is suitable for a wide range of sheet metals including mild steel, stainless steel, and aluminum, provided thicknesses fall within the specifications for standard Trumpf tooling.

Q: When should I opt for a coated punch (TiN or TiCN) versus an uncoated one?

A: You should consider a coated punch for applications involving abrasive materials or when seeking longer tool life. Coatings like TiN or TiCN enhance wear resistance and reduce friction during high-volume production, whereas uncoated punches are suitable for general-purpose punching.

Q: Where is the Straight Punch - Trumpf Type manufactured and supplied from?

A: This punch is manufactured and supplied in India, adhering to international quality standards and capable of being shipped globally through trusted logistics partners.

Q: What is the process for ordering customized dimensions or coatings for this punch?

A: To order a punch with custom dimensions or coatings, simply specify your requirements when placing your order. Provide details such as the desired coating (e.g., TiN, TiCN) and exact size specifications. The manufacturer will confirm feasibility and lead time based on your customization.

Q: How does the high hardness (HRC 60-65) of the punch benefit my punching operations?

A: A high hardness rating ensures the punch maintains its cutting edge over extended use, offering superior resistance to wear and deformation. This results in consistent punch quality, fewer replacements, and reduced downtime during manufacturing.
