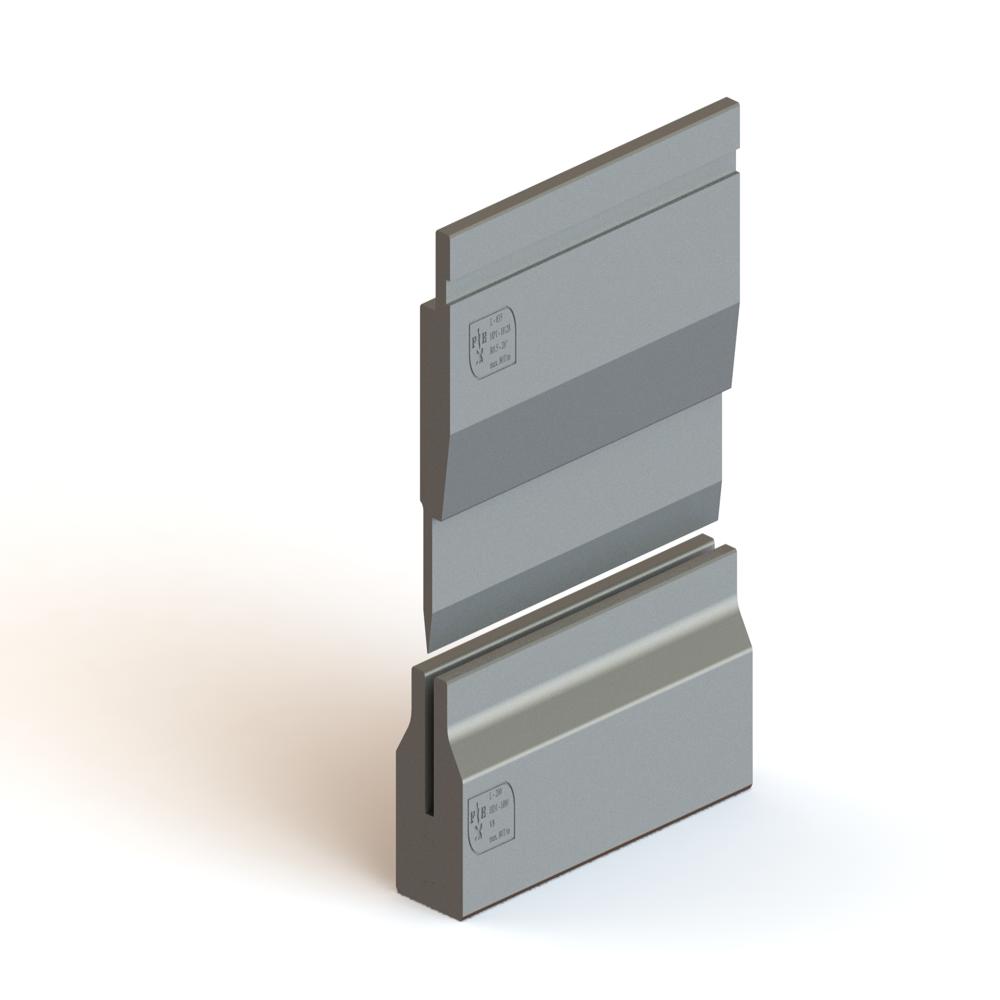

Slot Hemming Die V8 - Amada Type

Name: Slot Hemming Die V8 - Amada Type
Brand: FAROHAR ENGINEERING
Price: 75000.0 INR
Availability: InStock

Price 75000.0 INR/ Piece

Get a Price/Quote

MOQ : 4 Pieces

Slot Hemming Die V8 - Amada Type Specification

Die Head
V8 Slot Hemming Die

Working Process
Sheet Metal Hemming

Life Span
Up to 100,000 Cycles

Shaping Mode
Press Brake Tooling

Material
High Carbon Tool Steel

Application
Sheet Metal Bending, Hemming Operations

Height
214 Millimeter (mm)

Hardness
55-60 HRC

Product Type
Slot Hemming Die

Weight
43.5 Kilograms (kg)

Length
835 Millimeter (mm)

Width
60 Millimeter (mm)

Tolerance
0.01 mm

Mounting Style
Standard Amada

Max Sheet Thickness
1.2 mm (Mild Steel)

Surface Finish
Precision Ground

Tooling Type
Segmented

Weight
Approx. 3.2 kg

Die Length
835 mm

Slot Hemming Die V8 - Amada Type Trade Information

Minimum Order Quantity
4 Pieces

Delivery Time
4 Week

About Slot Hemming Die V8 - Amada Type

We are offering a huge range of Slot Type Hemming Die With Punch
For flattening upto 1.2mm
Economy Series of flattening tool.

Material :

M-01 Performance grade.

Cr'Mn'Mo 900-1100 N/mm2

(Alloy steel)

Quenched and tempered 302 HRc.

Tip Laser Hardened 522HRc.

Precision Engineered for Superior Hemming

Crafted using high carbon tool steel and boasting a hardness of 55-60 HRC, the Slot Hemming Die V8 delivers outstanding strength and rigidity. Its 0.01 mm tolerance guarantees consistent, accurate results, making it a favored choice for demanding sheet metal fabrication tasks involving bending and hemming. The segmented construction optimizes handling and workflow flexibility.

Compatible with Standard Amada Press Brakes

Designed with the standard Amada mounting style, this die offers seamless compatibility with a broad range of press brake machines. Its 835 mm length and substantial section height enable smooth operations on varied sheet sizes, optimizing productivity and ensuring operator safety across different fabrication setups in India.

FAQ's of Slot Hemming Die V8 - Amada Type:

Q: How is the Slot Hemming Die V8 - Amada Type installed on a press brake?

A: The die is designed with a standard Amada mounting style, enabling straightforward installation on compatible press brakes without the need for specialized adapters or hardware.

Q: What materials can be processed using this die, and what is the maximum sheet thickness?

A: This hemming die is engineered specifically for mild steel sheets, with a maximum thickness handling capacity of 1.2 mm, ensuring precise hem bends on thin gauge metals.

Q: When should I consider replacing the Slot Hemming Die V8 - Amada Type?

A: Replacement is recommended after approximately 100,000 operating cycles or if precision begins to decline, to maintain optimal sheet metal quality and avoid tool wear-related issues.

Q: Where can this V8 slot hemming die be used?

A: It is designed for use in sheet metal workshops, manufacturing plants, and fabrication facilities that employ Amada-type press brakes for bending and hemming applications.

Q: What benefits does a precision ground, segmented die bring to sheet metal operations?

A: A precision ground, segmented die delivers superior surface finish on workpieces, ensures tight tolerances, and allows for flexible arrangement or replacement of worn segments, enhancing both productivity and finished part quality.

Q: How does the surface finish and tight tolerance impact sheet metal hemming results?

A: The precision ground surface and 0.01 mm tolerance provide uniform bends and hems, minimizing material distortion and ensuring professional-quality components for industrial applications.

Q: What is the recommended process for using this die in hemming operations?

A: Begin by mounting the die securely on the press brake, position the mild steel sheet, and operate the press to achieve a consistent hem. Adhering to correct process parameters and sheet thicknesses maintains tool longevity and workpiece precision.
